MX5 configuration overview

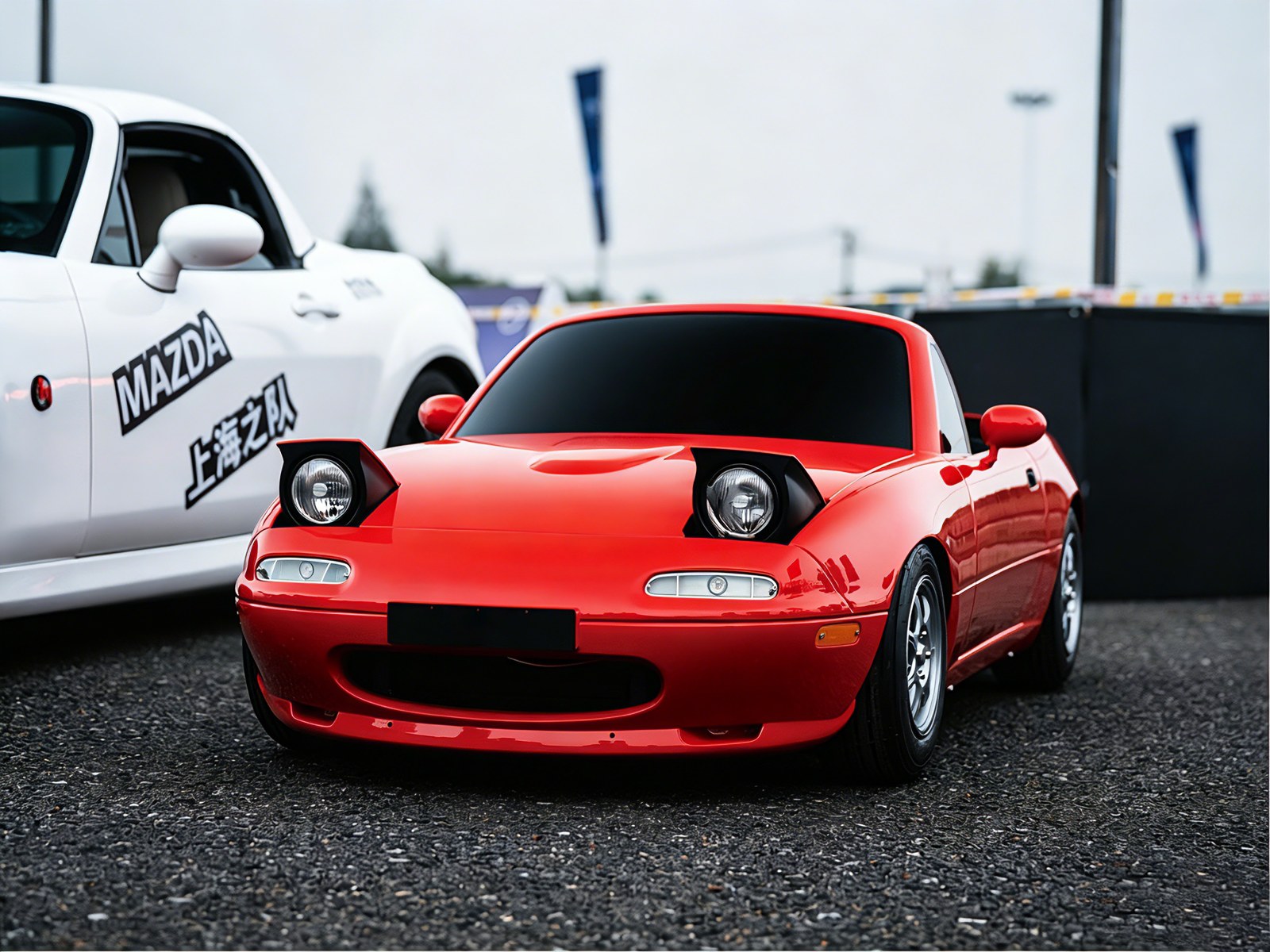

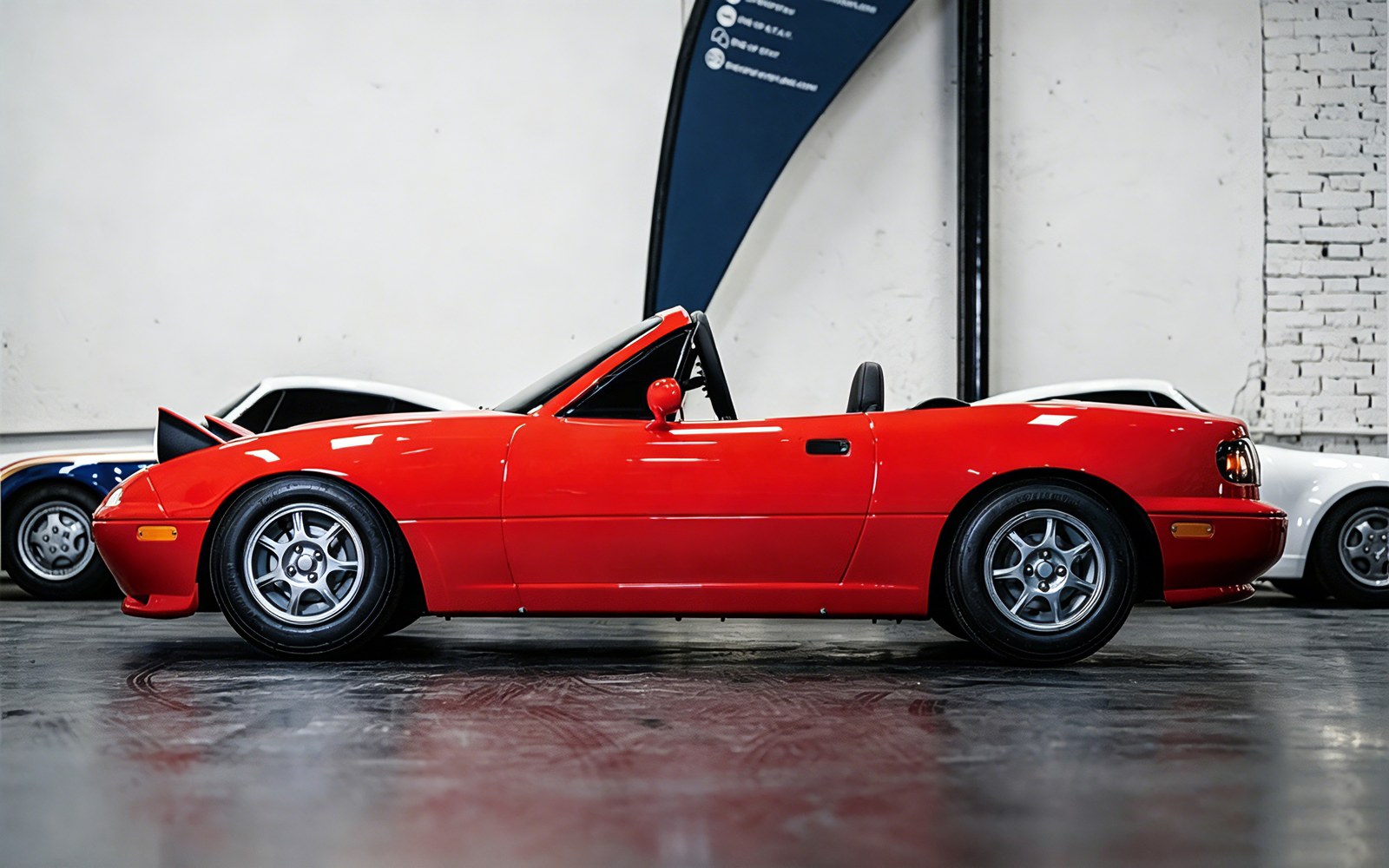

The MX5 Electric Drift Go-Kart is a separate body and chassis configuration from the 930D. Its listed dimensions are 2,580 × 1,150 × 750 mm. Review rear-tire equipment, seating and the intended operating surface when specifying a drift order.
Compare the model options
Compare the MX5 with the 930D for drift equipment and footprint, or with the AE86 for a different retro body configuration. Confirm the exact seat arrangement and tire specification before ordering.
Related models: 930D and AE86. Compare the complete product range.
Technical specifications
| Parameter | MX5 |
|---|---|
| Brand | SUNRISTECH |
| Motor Type | Permanent Magnet Synchronous Brushless Motor |
| Motor Power | 2500W / 72V |
| Body Material | One-Piece ABS Plastic Body |
| Chassis structure | Q235 Structural Steel + Laser-Welded Space Frame |
| Drive System | Rear-Mounted Motor + Rear-Wheel Drive |
| Suspension | Double Wishbone Suspension / Solid Rear Axle / Hydraulic Shock Absorbers |
| Max. Speed | Top Speed: Up to 80 km/h |
| Starting system | Key Start |
| Battery | 72V / 40Ah Branded Lithium Battery |
| Maximum payload | 250 kg |
| Transmission | Shaft Drive |
| Min Ground Clearance | 90 mm |
| Front Tire Size | 15 / 6.0 / 8 Vacuum Tires |
| Rear Tire Size | 15 / 6.0 / 8 Vacuum Tires |
| Braking System | Hydraulic Disc Brakes |
| Parking Brake | Electronic Braking /Racing Hydraulic Mechanical Handbrake for the optional |
| Gear Selection | Forward / Reverse / Low Speed / High Speed |
| Operating Time | Approx. 6–8 Hours |
| Driving Range | 50 km Range |
| Lighting System | Headlights / Brake Lights / Turn Signals / Independent Remote-Controlled Pop-Up Lights |
| Charging Time | Standard Charging: 6 Hours / Fast Charging: 1 Hour |
| Net Weight | 230 kg / Single Seat ; 240 kg / Two Seats |
| Dimensions (L × W × H) | 2580 × 1150 × 750 mm |

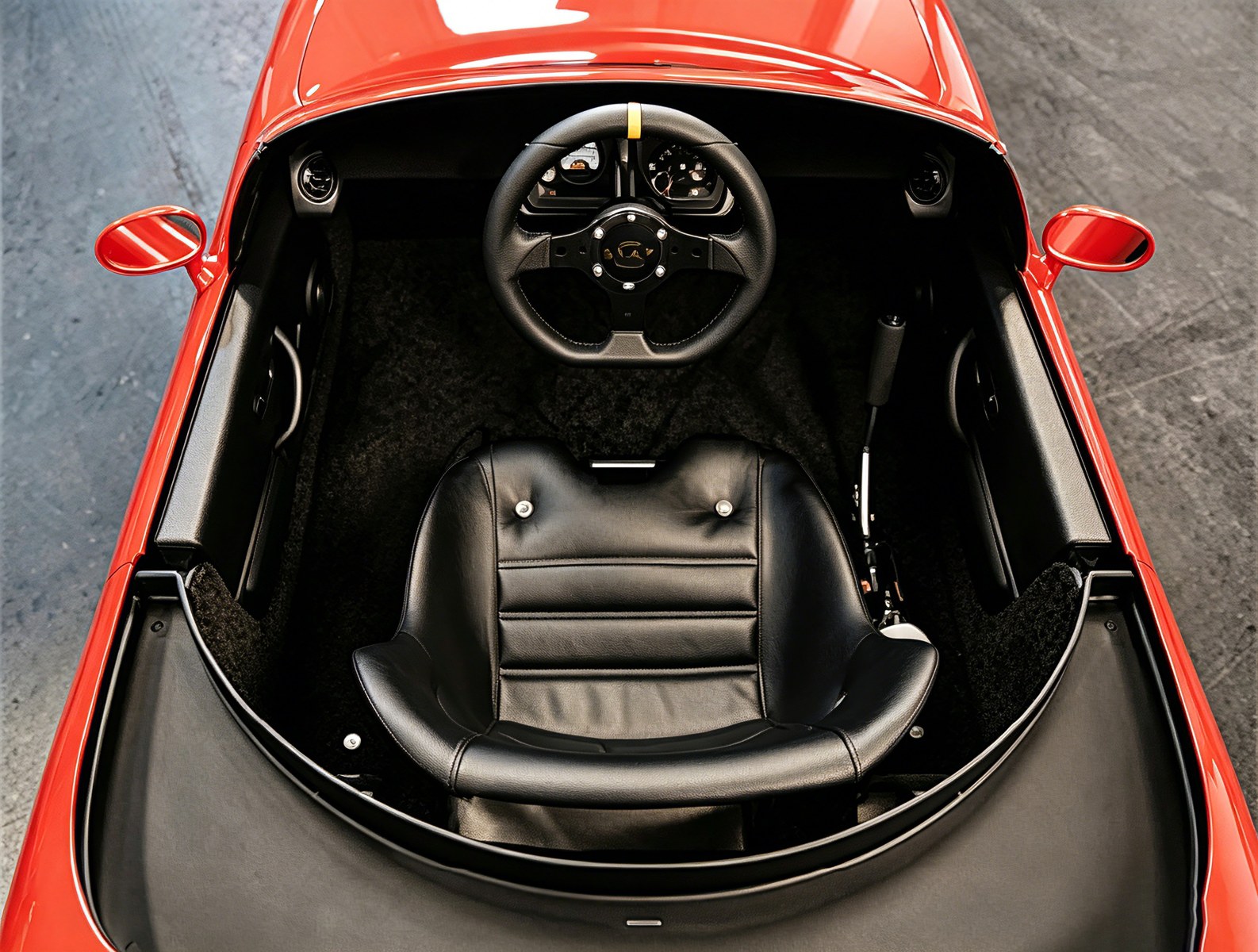

| Seat Configuration | Adjustable Seat / Safety Belt |
| Package Gross Weight | 290 kg /Single-Seat ; 300 kg /Two-Seat |
| Package Size | 2600*1150*750mm |
| Container loading reference | 24PCS/40HQ ； 12PCS/20GP |
Specifications describe the listed configuration. Range, charging time and performance depend on the battery, load, route and operating conditions. Confirm the final equipment and specification in your quotation.
Configuration and wholesale enquiries
Request MX5 availability with your quantity, destination and intended use. Tell us any color, branding or equipment requirements. Available options, minimum order and sample terms are confirmed for the selected configuration.
For branding or engineering changes, see our customization service. For model mixes and ongoing supply, visit wholesale and dealer cooperation.
Before confirming your order
- Agree the exact motor, battery, charger and included equipment.
- Confirm seating, vehicle dimensions and the intended operating environment.
- Review packing, freight terms, destination requirements and delivery timing.
- Request the applicable operating documents, warranty terms and support arrangements.
MX5 buyer questions
Which battery and motor are included?
The listed configuration is 2500W / 72V, with 72V / 40Ah Branded Lithium Battery. Confirm the motor, cooling arrangement, battery and charger together in the quotation.
Can I request a sample or a mixed-model order?
Ask for availability of the MX5 configuration and provide your model quantities and destination. Sample terms, minimum order, packing and delivery timing are confirmed for the order.
