LH-4GF configuration overview
The SUNRISTECH LH-4GF is a 4-seat electric golf cart with a 72V / 100Ah battery specification and a listed footprint of 3250 × 1250 × 1900 mm. Compare its passenger capacity, turning radius and charging requirements for a resort, leisure property or other managed-site transport project.
Compare the model options
This 4-seat configuration lists a 3.5 kW motor and a 72V / 100Ah battery. Check the 3250 × 1250 × 1900 mm vehicle dimensions against route width, storage space and transport plans. Battery chemistry should be confirmed in the quotation; voltage and capacity alone do not establish that it is lithium.

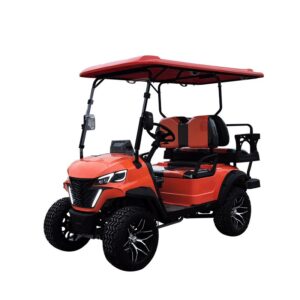

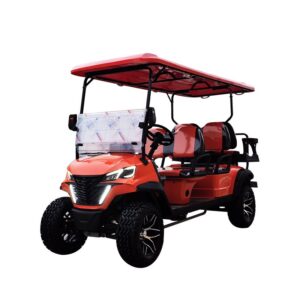

Related models: LH-GF-PRO (1+1) and LH-6GF. Compare the complete product range.
Technical specifications
| Parameter | LH-4GF |
|---|---|
| Brand | SUNRISTECH |
| Dimensions (L × W × H) | 3250 x 1250 x 1900 mm |
| Controller | 72V / 400A |
| Battery | 72V / 100Ah |
| Motor Power | 3.5 kW |
| Charging Time | 8-10 Hours |
| Range | <=100 km |
| Seating Capacity | 4 Persons |
| Curb Weight | 560 kg |
| Max. Speed | 30 km/h |
| Max. Gradeability | 15% |
| Front Track | 990 mm |
| Rear Track | 1000 mm |
| Min. Turning Radius | 6 m |
| Wheelbase | 2350 mm |
| Min. Ground Clearance | 150 mm |
| Braking Distance | <=5 m |
| Steering System | Rack-and-Pinion Steering |
| Frame | Steel Frame |
| Steering Wheel | Polyurethane Foam Steering Wheel |
| Tires | 205/50-10 |
| Front Axle & Suspension | Independent Suspension |
| Transmission | Continuously Variable Transmission |
| Floor | Electrophoretic-Coated Welded Steel Floor |
| Body Material | PP Plastic |
| Suspension / Shock Absorbers | MacPherson Independent Suspension |
| Cockpit | Adjustable Seats / Safety Belts |
| Package Gross Weight | 630 kg |
| Package Size | 3350 x 1320 x 1200 mm |
| Container loading reference | 6 PCS / 40HQ; 1 PC / 20GP |
Specifications describe the listed configuration. Range, charging time and performance depend on the battery, load, route and operating conditions. Confirm the final equipment and specification in your quotation.
Configuration and wholesale enquiries
Request LH-4GF availability with your quantity, destination and intended use. Tell us any color, branding or equipment requirements. Available options, minimum order and sample terms are confirmed for the selected configuration.
For branding or engineering changes, see our customization service. For model mixes and ongoing supply, visit wholesale and dealer cooperation.
Before confirming your order
- Agree the exact motor, battery, charger and included equipment.
- Confirm seating, vehicle dimensions and the intended operating environment.
- Review packing, freight terms, destination requirements and delivery timing.
- Request the applicable operating documents, warranty terms and support arrangements.
LH-4GF buyer questions
Which seating configuration should I choose?
Start with the passenger count and route dimensions. This model lists 4 persons. Compare the standard and Pro layouts where available, then confirm the final seating arrangement.
What should I confirm about charging?
The configuration lists 8-10 Hours. Confirm battery chemistry, charger input and the available site supply before ordering. Charging time and range depend on the actual battery and operating conditions.
