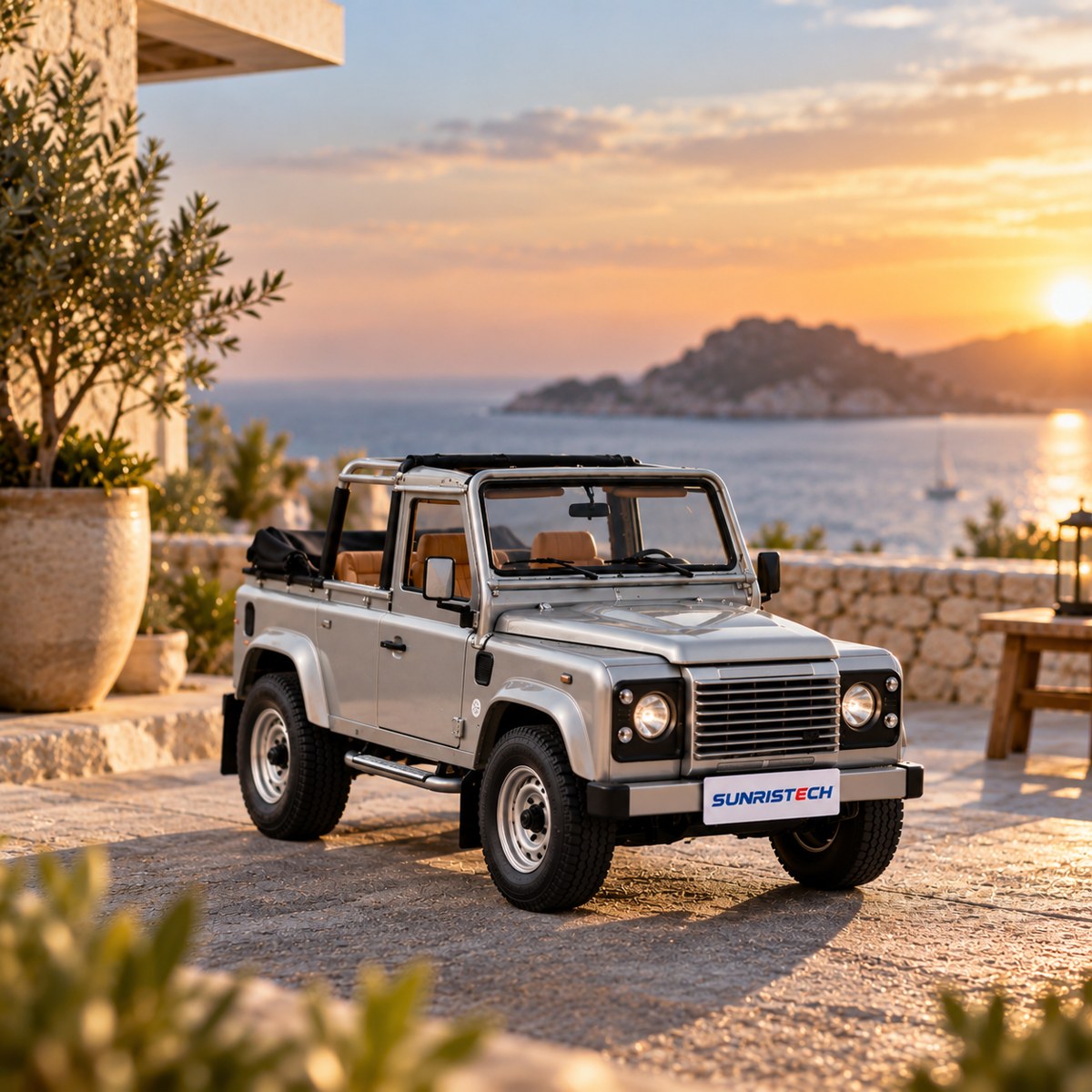

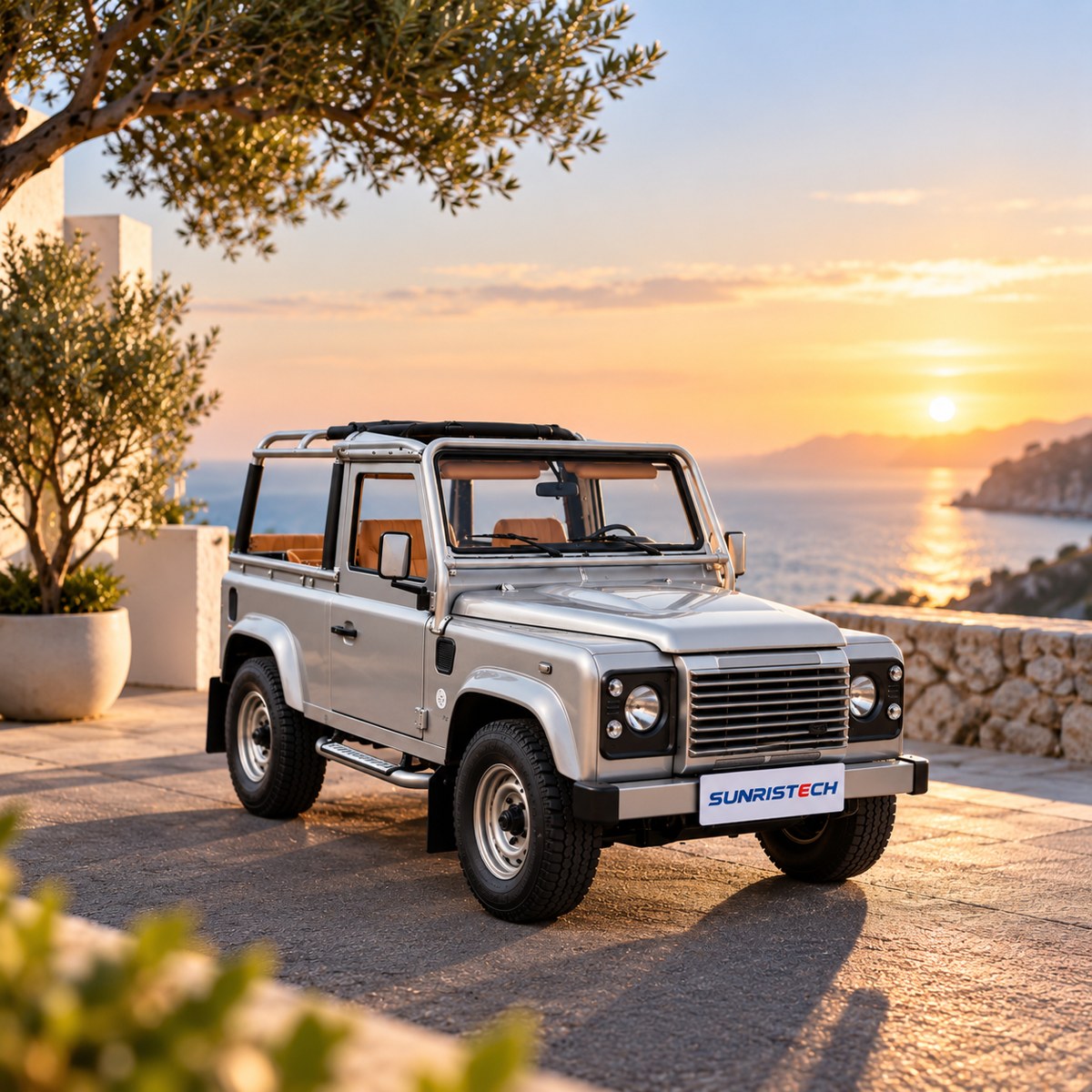

L-MAX-1 configuration overview
The L-MAX-1 is the four-seat MAX configuration in the L series, with AWD, a 72V / 120Ah lithium battery and a listed 20 kW rated motor output. The specification also includes a gasoline range extender. Confirm its equipment and operating arrangement in the quotation.
Compare the model options
Compared with the MINI, this MAX model has four seats, AWD and a larger 2,600 × 1,400 × 1,400 mm body. Evaluate terrain, turning space, passenger load and charging access together. Rated and peak motor outputs are different values.
Related models: L-MINI-1. Compare the complete product range.
Technical specifications
| Parameter | L-MAX-1 |
|---|---|
| Brand | SUNRISTECH |
| Motor Type | Water-Cooled Permanent Magnet Synchronous Motor |
| Motor Power | Rated Power: 20 kW / Peak Power: 45 kW |
| Body Material | One-Piece Composite Fiber Body |
| Chassis structure | Q235 Structural Steel + Laser-Welded Space Frame |
| Drive System | AWD / Electric Drive / Gasoline Range Extender |
| Suspension | Front Double Wishbone / Rear Multi-Link Suspension |
| Max. Speed | Up to 100 km/h |
| Starting system | Key Start |
| Battery | 72V / 120Ah Branded Lithium Battery |
| Maximum payload | 300 kg |
| Transmission | Shaft Drive |
| Max. Gradeability | 0.6 |
| Min. Ground Clearance | 250 mm |
| Front / Rear Tires | 22×10-14 Off-Road Tires |
| Braking System | Front & Rear Hydraulic Ventilated Disc Brakes |
| Shock Absorbers | Four-Wheel Hydraulic Shock Absorbers |
| Parking Brake | Electronic Parking Brake |
| Drive Modes | Forward / Reverse / Low Speed / High Speed |
| Runtime | Approx. 6–8 Hours |
| Range | 100 km (Typical Operating Conditions) |
| Lighting | Headlights / Brake Lights / Turn Signals |
| Seating Layout | 2 Rows / 4 Seats |
| Charging Time | Standard: 8 Hours / Fast: 2 Hours |
| Net Weight | 380 kg |
| Dimensions (L × W × H) | 2600x1400x1400 mm |
| Cockpit | Adjustable Seats / Safety Belts |
| Package Gross Weight | 460kg |
| Package Size | 2320x1300x1190 mm |
| Container loading reference | 18PCS/40HQ ；8PCS/20GP |
Specifications describe the listed configuration. Range, charging time and performance depend on the battery, load, route and operating conditions. Confirm the final equipment and specification in your quotation.
Configuration and wholesale enquiries
Request L-MAX-1 availability with your quantity, destination and intended use. Tell us any color, branding or equipment requirements. Available options, minimum order and sample terms are confirmed for the selected configuration.
For branding or engineering changes, see our customization service. For model mixes and ongoing supply, visit wholesale and dealer cooperation.
Before confirming your order
- Agree the exact motor, battery, charger and included equipment.
- Confirm seating, vehicle dimensions and the intended operating environment.
- Review packing, freight terms, destination requirements and delivery timing.
- Request the applicable operating documents, warranty terms and support arrangements.
L-MAX-1 buyer questions
Is this model four-wheel drive?
The MAX specification lists AWD and a gasoline range extender. Confirm both in the order. The MINI version uses RWD.
How are rated and peak power different?
The listed motor specification is Rated Power: 20 kW / Peak Power: 45 kW. Use the rated output and intended duty cycle when comparing models; peak output is a separate specification.
