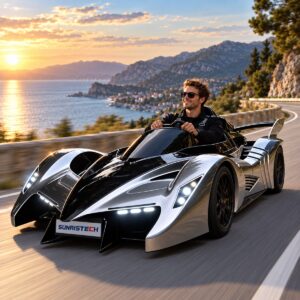

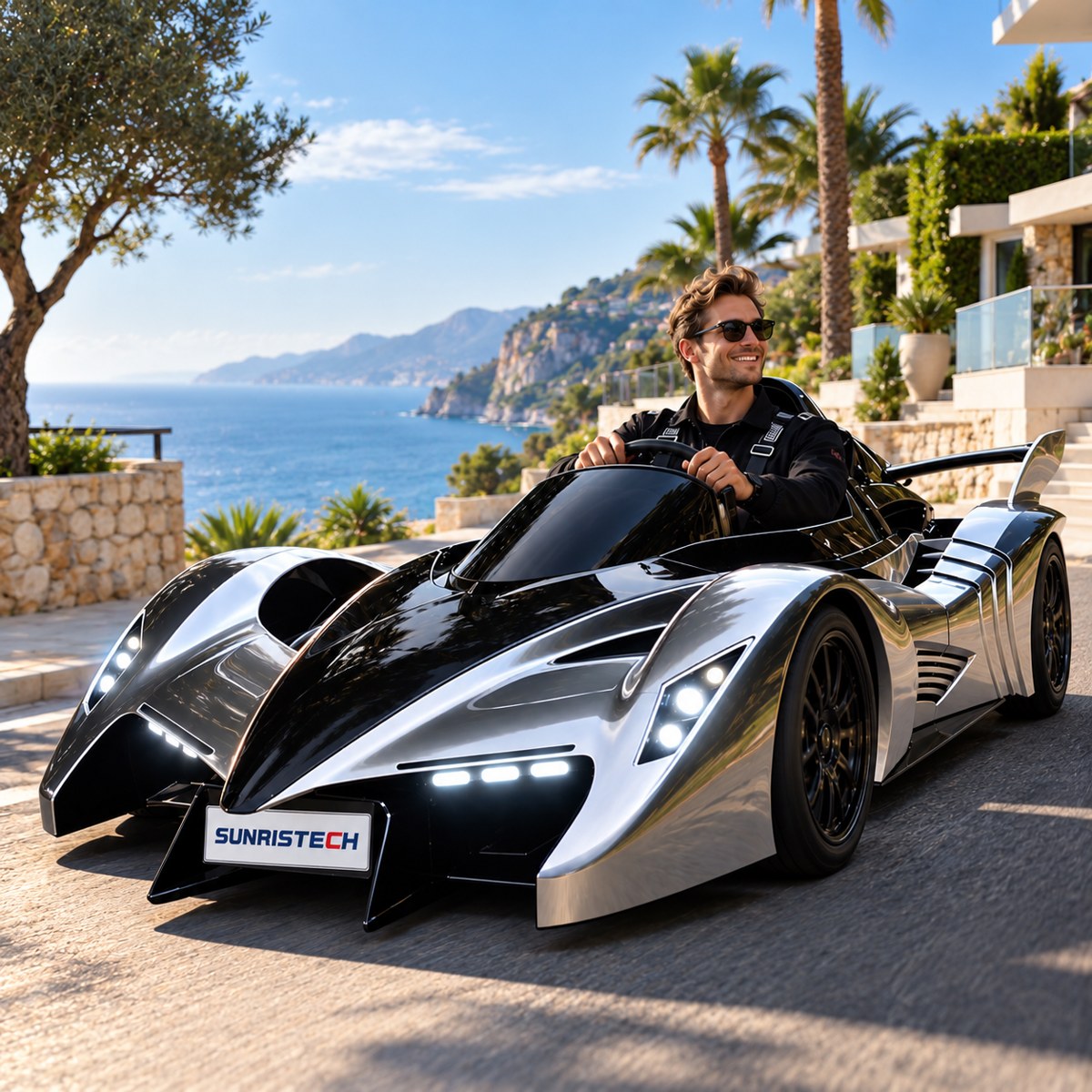

DK1 configuration overview
The DK1 is the standard model in the DK1 electric go-kart series. Compare its 2,500 W motor and 40 Ah battery with the DK1 Pro before selecting the vehicle configuration for your project.
Compare the model options
The Pro version lists a 4,000 W water-cooled motor and a 72V / 75Ah battery. This standard model uses the 2,500 W motor and 40 Ah battery. Select the specification that fits your operating plan rather than assuming the versions are interchangeable.
Related models: DK1 Pro. Compare the complete product range.
Technical specifications
| Parameter | DK1 |
|---|---|
| Brand | SUNRISTECH |
| Motor Type | Permanent Magnet Synchronous Brushless Motor |
| Motor Power | 2500W / 72V |
| Body Material | One-Piece Composite Fiber Body |
| Chassis structure | Q235 Structural Steel + Laser-Welded Space Frame |
| Drive System | Rear-Mounted Motor + Rear-Wheel Drive |
| Suspension | Front & Rear Double Wishbone Suspension + Hydraulic Shock Absorbers |
| Max. Speed | Up to 80 km/h |
| Starting system | Key Start |
| Battery | 72V / 40Ah Branded Lithium Battery |
| Maximum payload | 260 kg |
| Transmission | Shaft Drive |
| Min. Ground Clearance | 90 mm |
| Front Tires | 165/45-R10 Radial Tires |
| Rear Tires | 165/45-R10 Radial Tires |
| Braking System | Hydraulic Disc Brakes |
| Parking Brake | Electronic Parking Brake |
| Drive Modes | Forward / Reverse / Low Speed / High Speed |
| Runtime | Approx. 6-8 Hours |
| Range | 50 km |
| Lighting | Headlights / Brake Lights / Turn Signals |
| Charging Time | Standard: 6 Hours / Fast: 1 Hour |
| Net Weight | 220 kg / Single Seat |
| Dimensions (L × W × H) | 2350 x 1150 x 750 mm |
| Seat Configuration | Adjustable Seat / Safety Belt |
| Package Gross Weight | 300 kg |
| Package Size | 2400 x 1150 x 750 mm |
| Container loading reference | 30 PCS / 40HQ; 12 PCS / 20GP |
Specifications describe the listed configuration. Range, charging time and performance depend on the battery, load, route and operating conditions. Confirm the final equipment and specification in your quotation.
Configuration and wholesale enquiries
Request DK1 availability with your quantity, destination and intended use. Tell us any color, branding or equipment requirements. Available options, minimum order and sample terms are confirmed for the selected configuration.
For branding or engineering changes, see our customization service. For model mixes and ongoing supply, visit wholesale and dealer cooperation.
Before confirming your order
- Agree the exact motor, battery, charger and included equipment.
- Confirm seating, vehicle dimensions and the intended operating environment.
- Review packing, freight terms, destination requirements and delivery timing.
- Request the applicable operating documents, warranty terms and support arrangements.
DK1 buyer questions
Which battery and motor are included?
The listed configuration is 2500W / 72V, with 72V / 40Ah Branded Lithium Battery. Confirm the motor, cooling arrangement, battery and charger together in the quotation.
Can I request a sample or a mixed-model order?
Ask for availability of the DK1 configuration and provide your model quantities and destination. Sample terms, minimum order, packing and delivery timing are confirmed for the order.
